Tempering System Photo Gallery
Page 4 of 5 < Previous Page | Next Page >

Place holder image for thumbnails Place holder image for thumbnails Place holder image for thumbnails Place holder image for thumbnails Place holder image for thumbnails

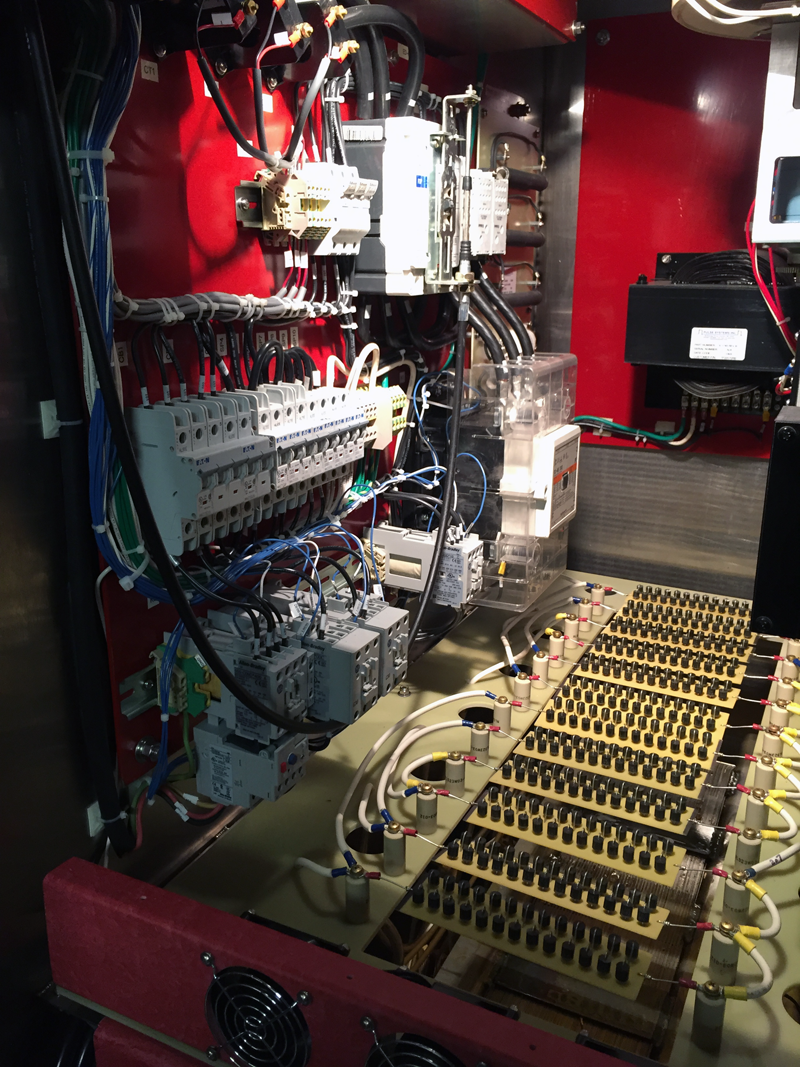

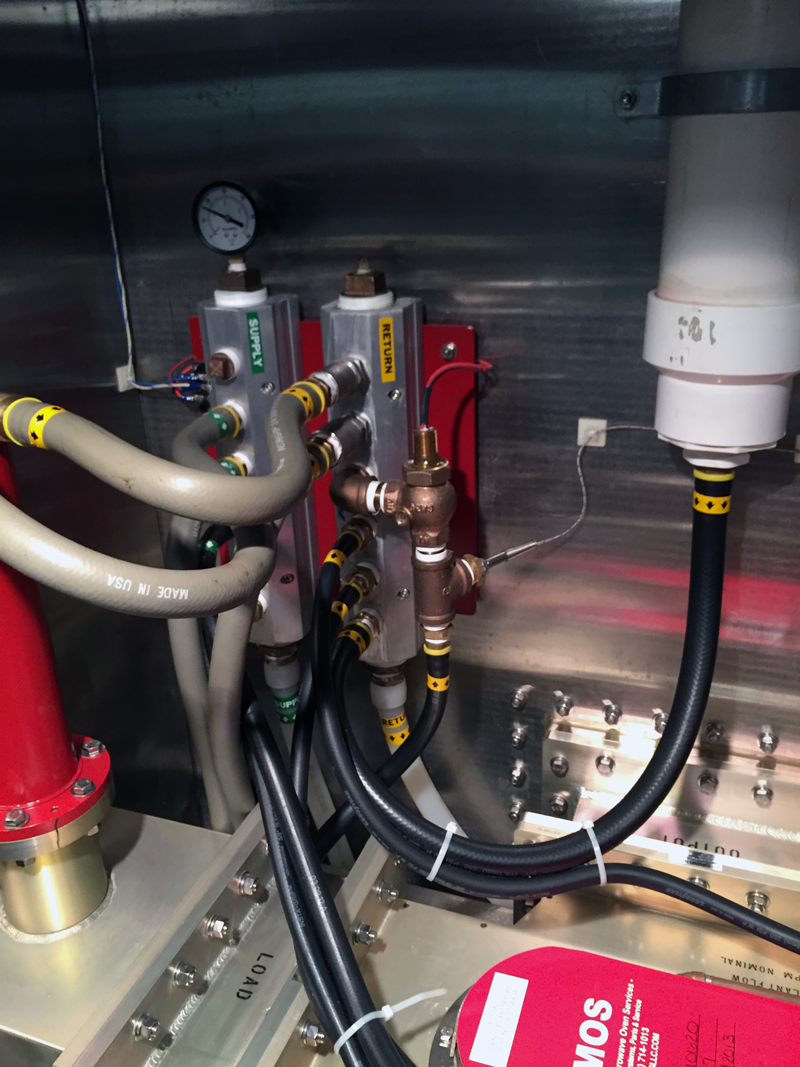

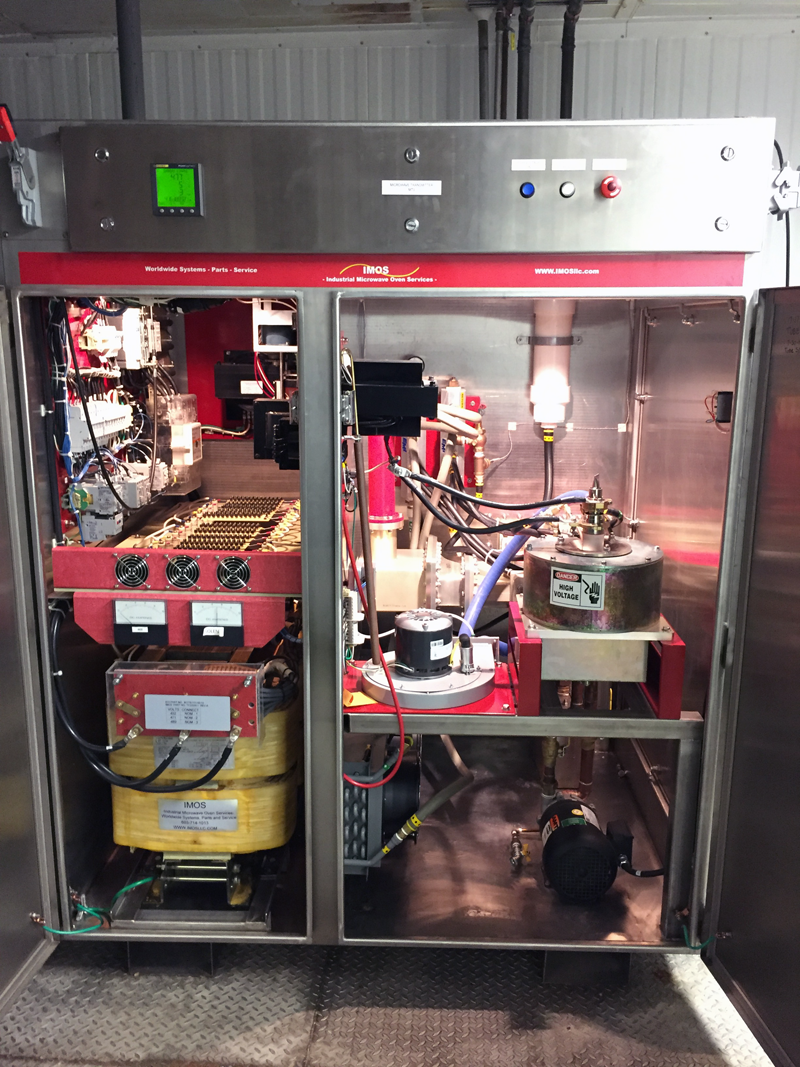

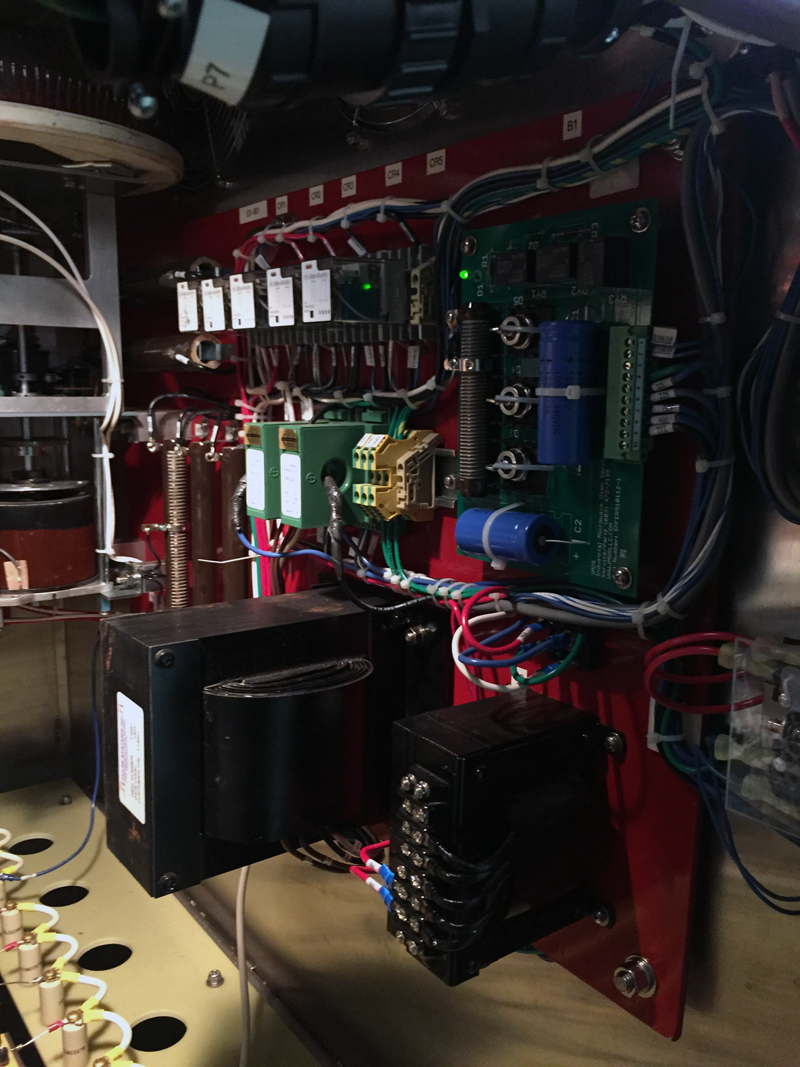

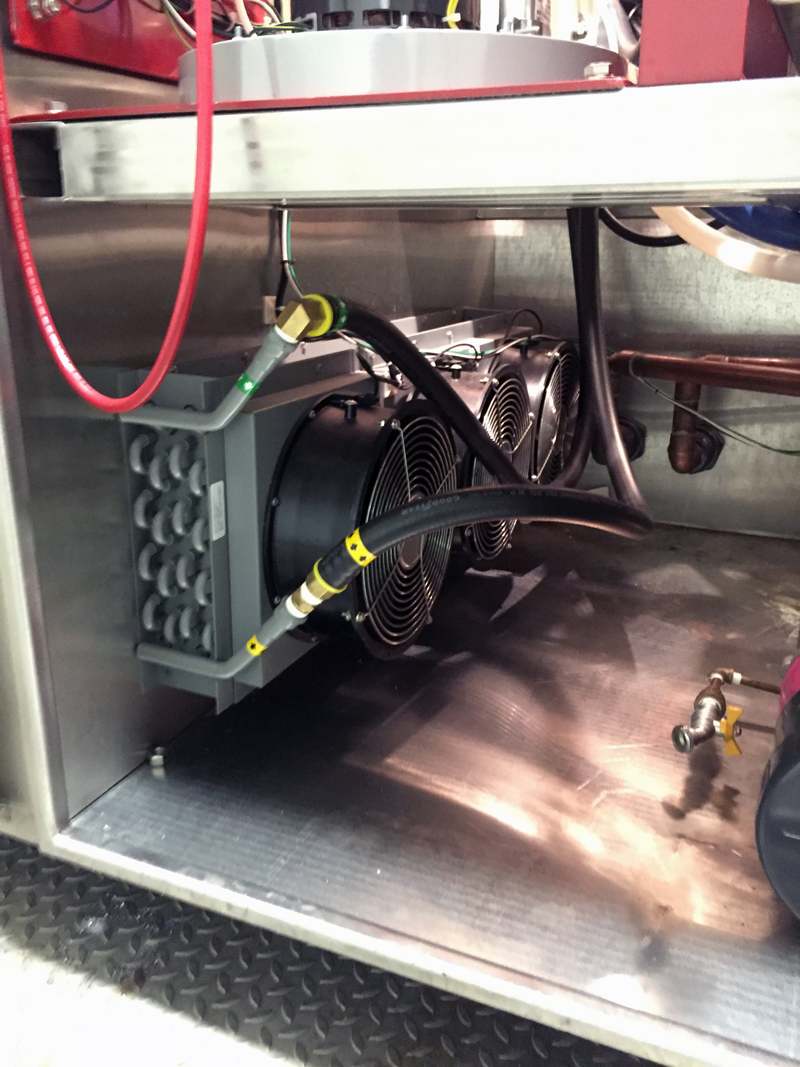

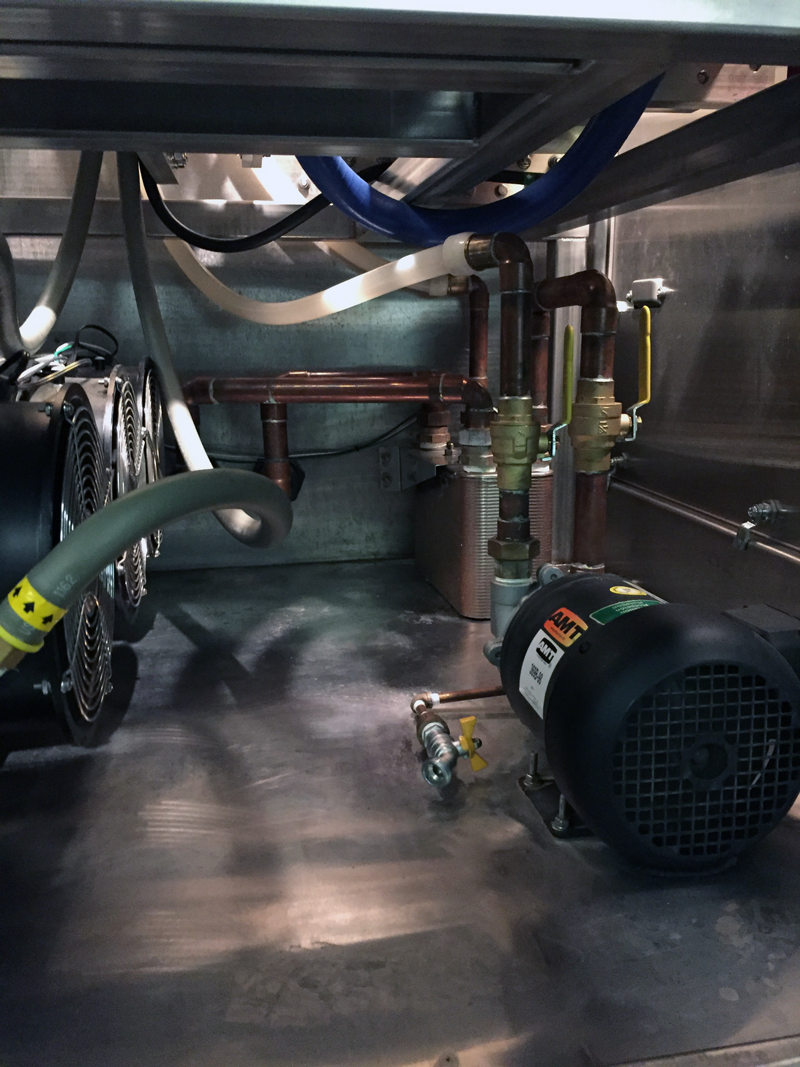

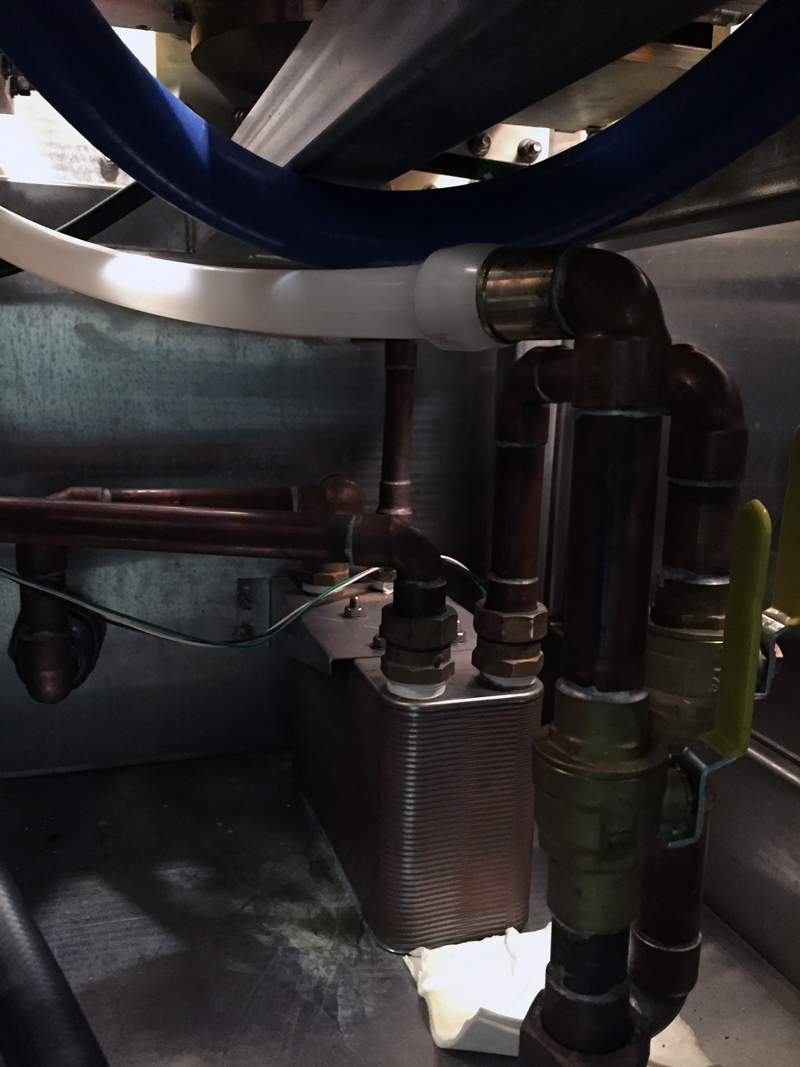

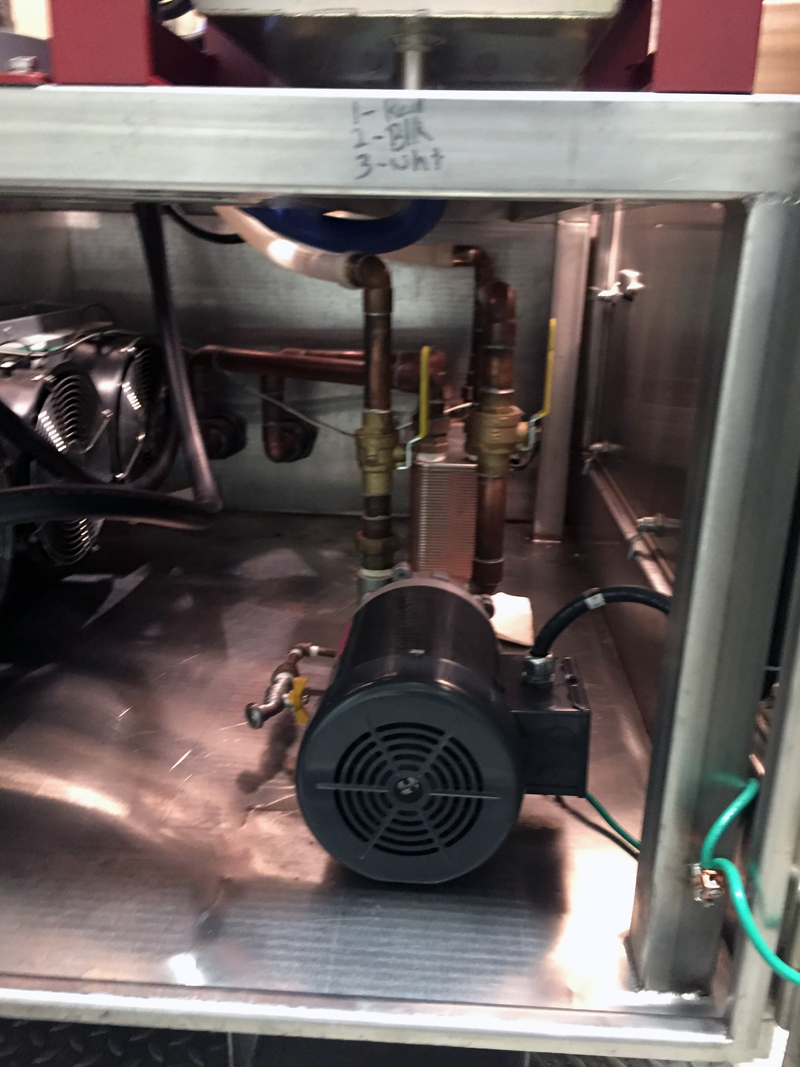

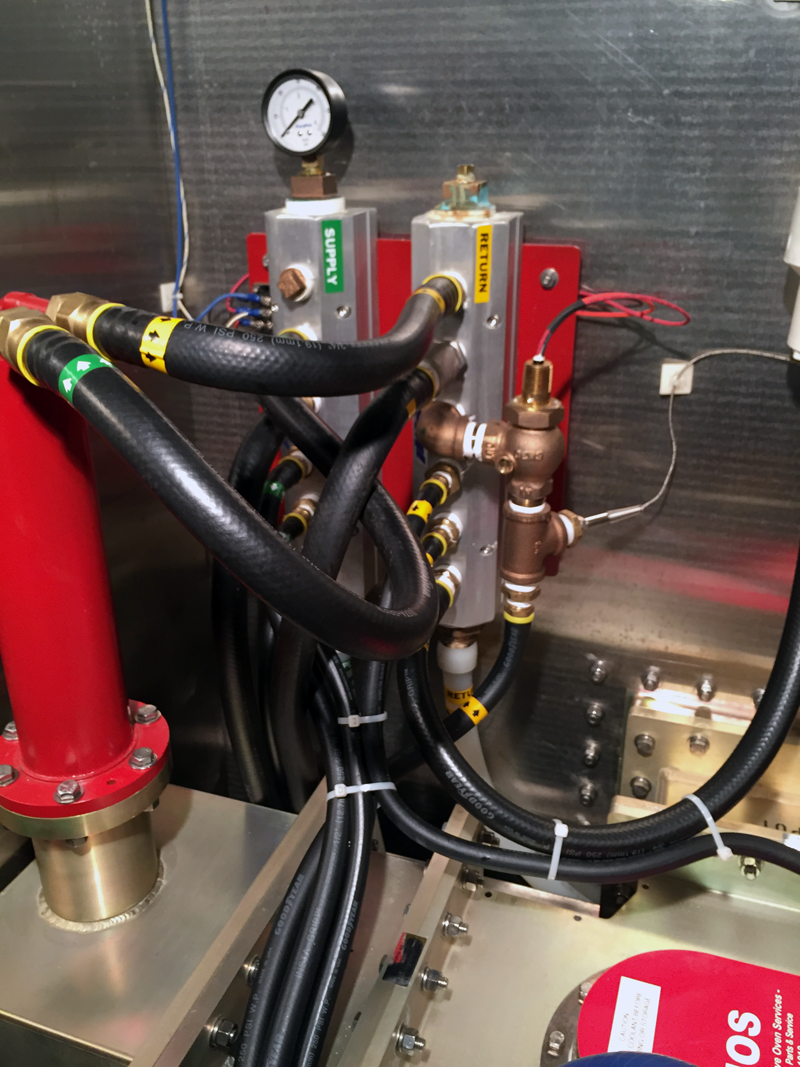

MachWave Transmitter Interior View of the Water Manifold. Internal cooling system with plate heat exchanger all internal with complete access for service from the right side access panel that is easily removed by one person. Internal air cooling for the MachWave transmitter. View of the inside of the cooling system showing the plate heat exchanger and the quality plumbing in our design. Interior view of the "left side" of the transmitter. This is the monitoring and analog interface panel that controls the magnetron power and electromagnet circuit.
Place holder image for thumbnails Place holder image for thumbnails Place holder image for thumbnails Place holder image for thumbnails Place holder image for thumbnails

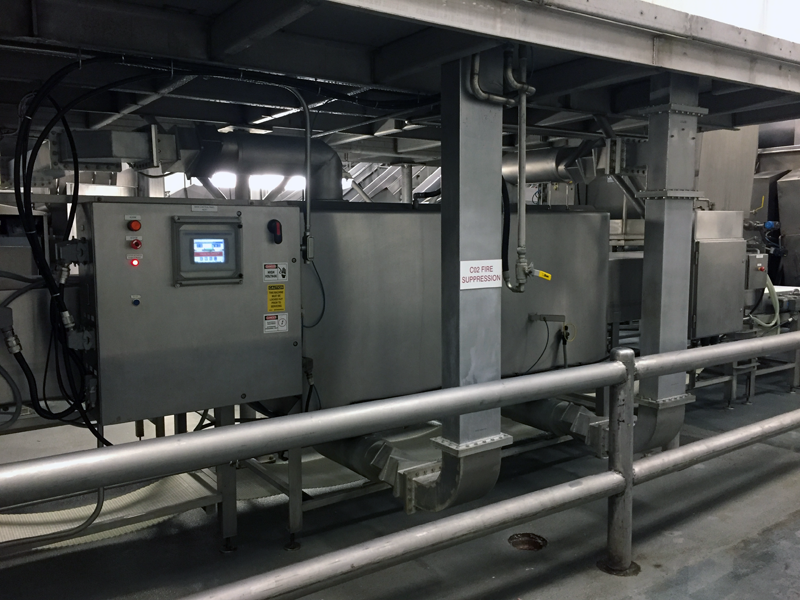

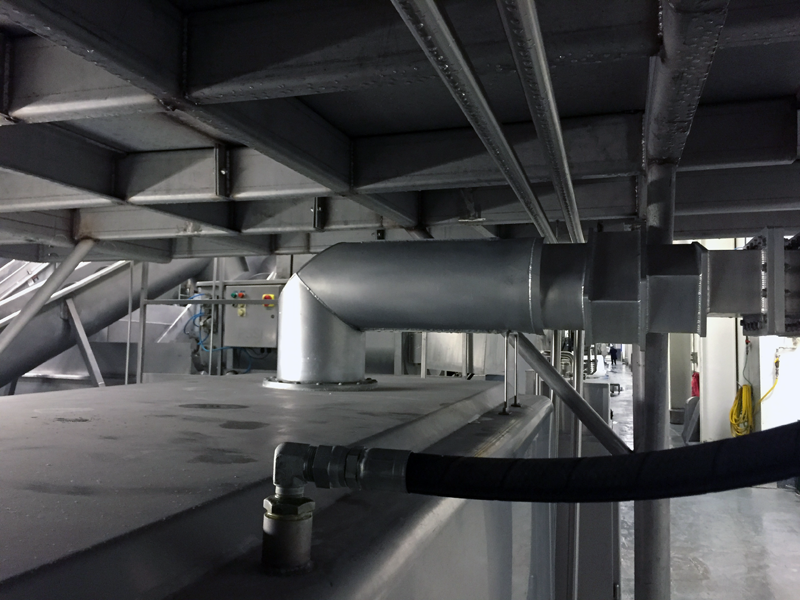

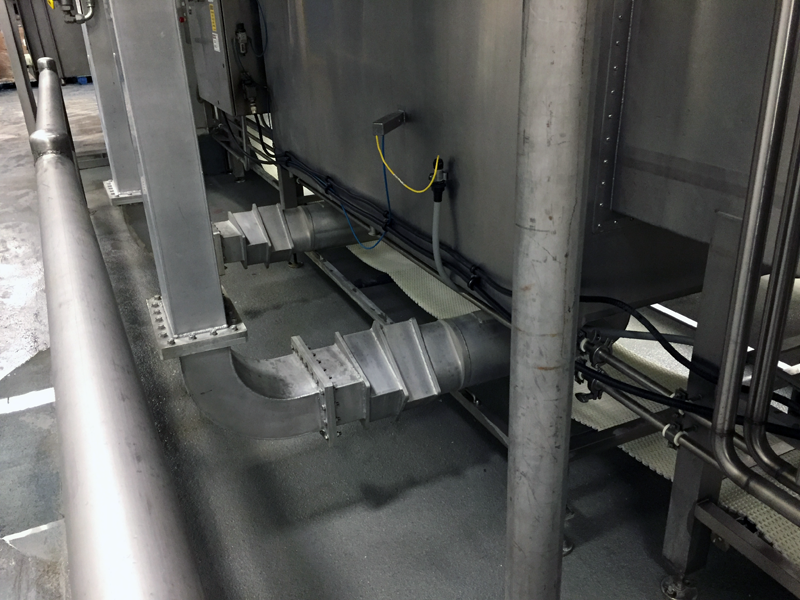

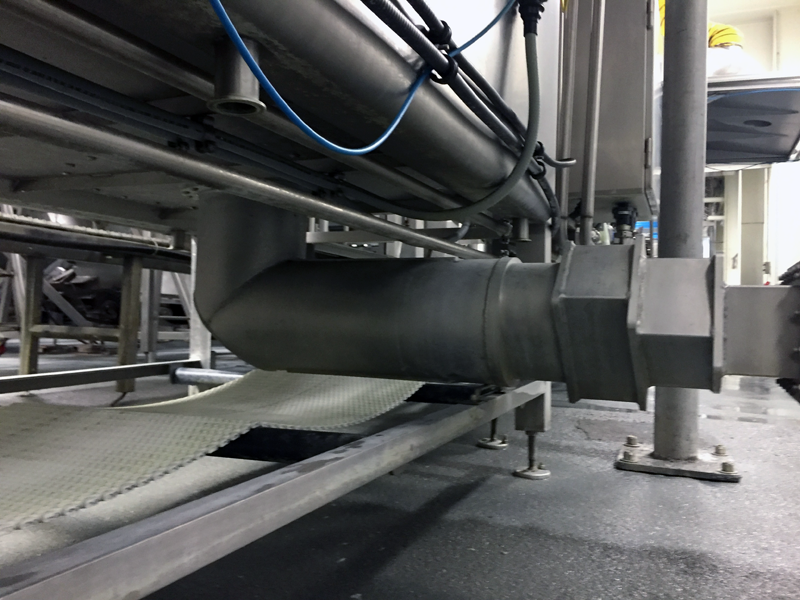

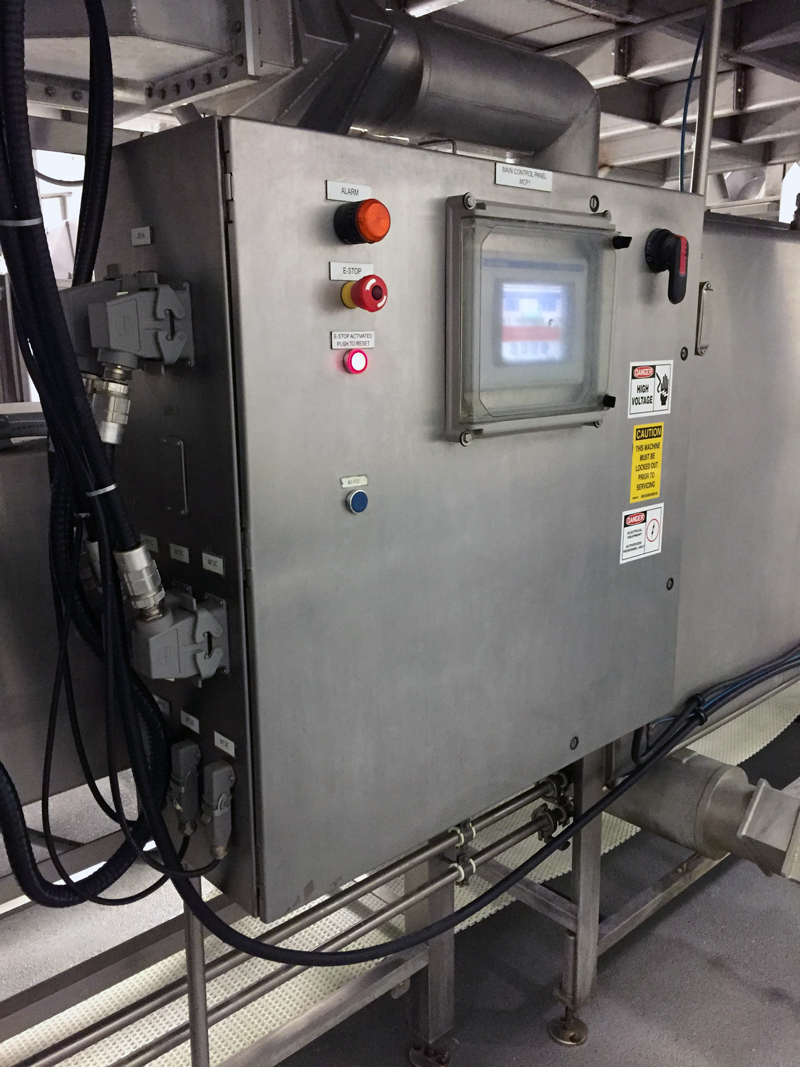

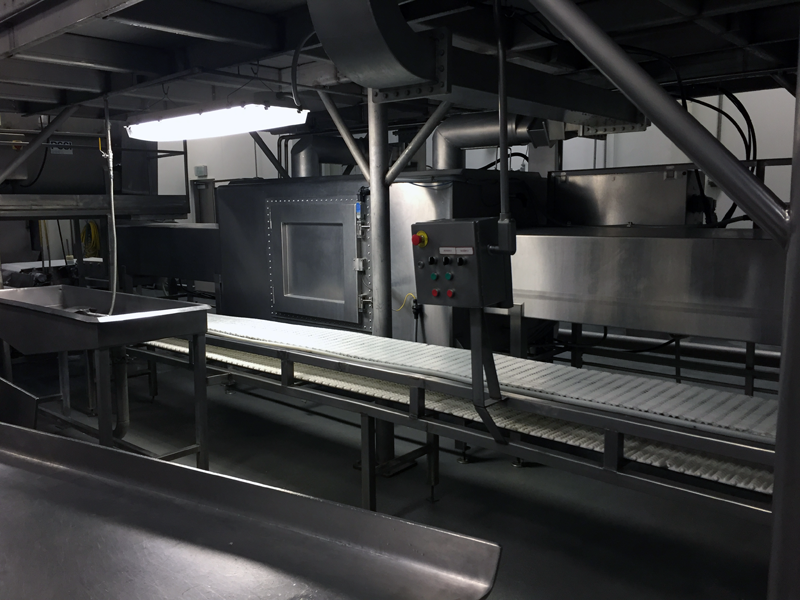

Machwave Circular Microwave Feeds entering the bottom of the Tempering System. Rear view of the tempering cavity and the control box. Waveguide configuration also shown. Allen Bradley control systems designed to automate the entire process. MachWave Circular Feed delivers the highest level of uniformity in the industry. Lower view of the circular feeds entering the tempering cavity.
Place holder image for thumbnails Place holder image for thumbnails Place holder image for thumbnails Place holder image for thumbnails Place holder image for thumbnails

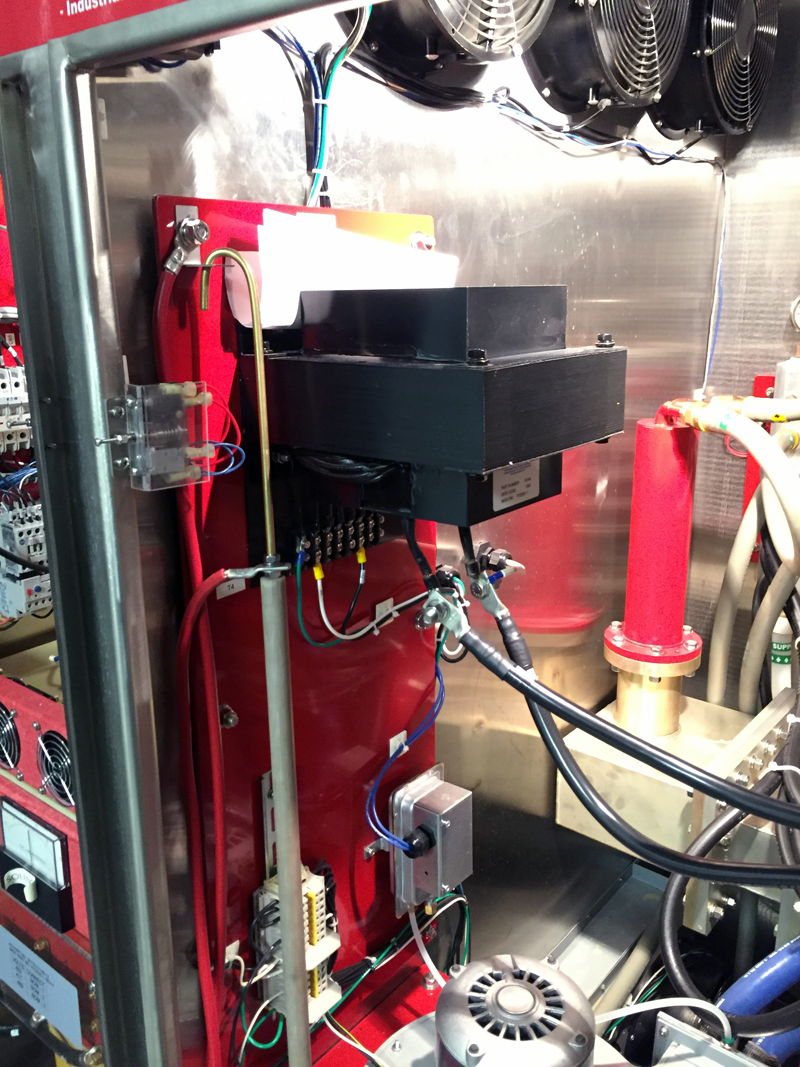

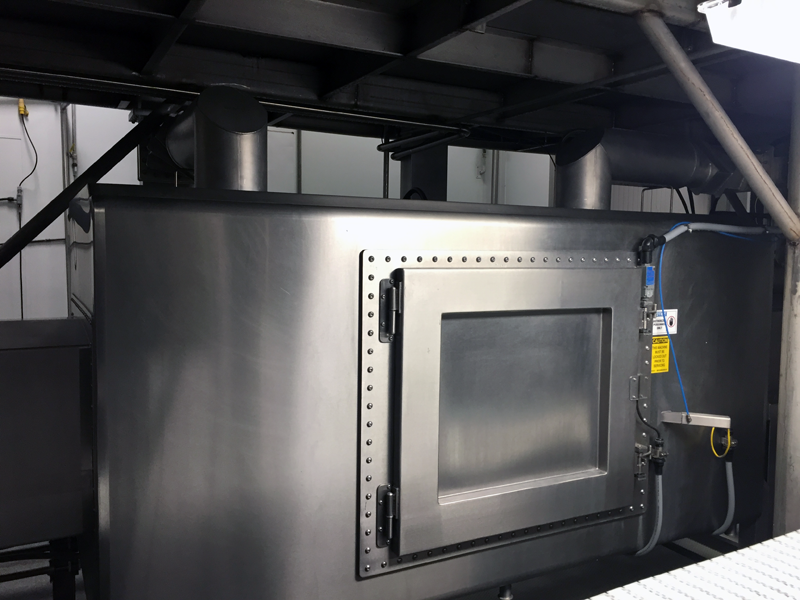

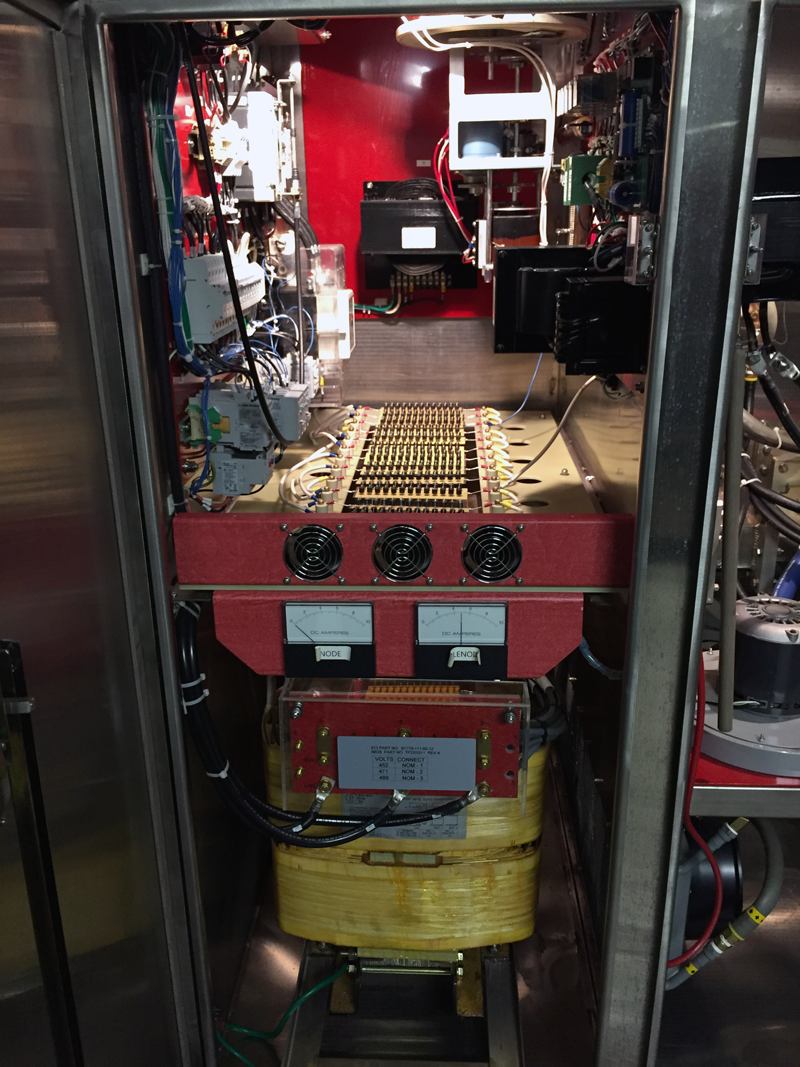

Tempering System Applicator showing the door side of the system. Machlett microwave doors are highly polished stainless steel and the latest sanitary design. Electrical (left hand) side of the MachWave Transmitter. Designed to isolate the water and power by good Engineering practices. View of the left side of the Machwave Transmitter. The high quality parts and construction are evident in every system we manufacture. MachWave Transmitter "right side" compartment showing the filament transformer, and air recirculation blowers.
Place holder image for thumbnails Place holder image for thumbnails Place holder image for thumbnails Place holder image for thumbnails Place holder image for thumbnails

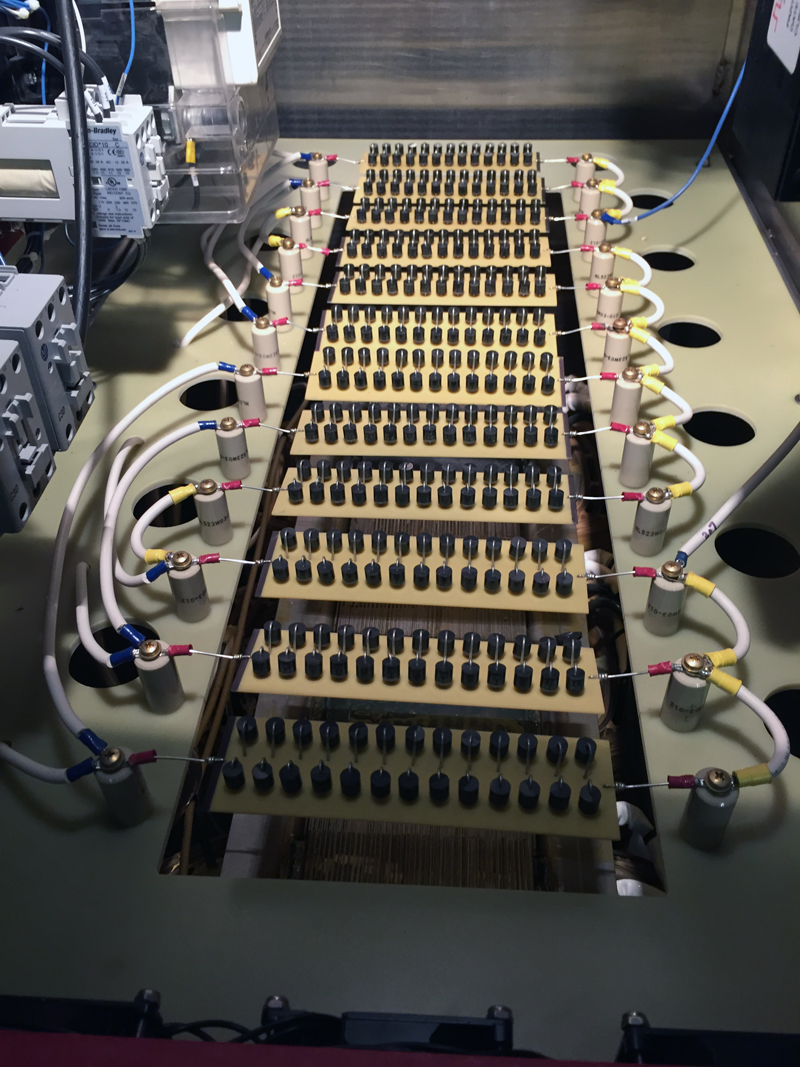

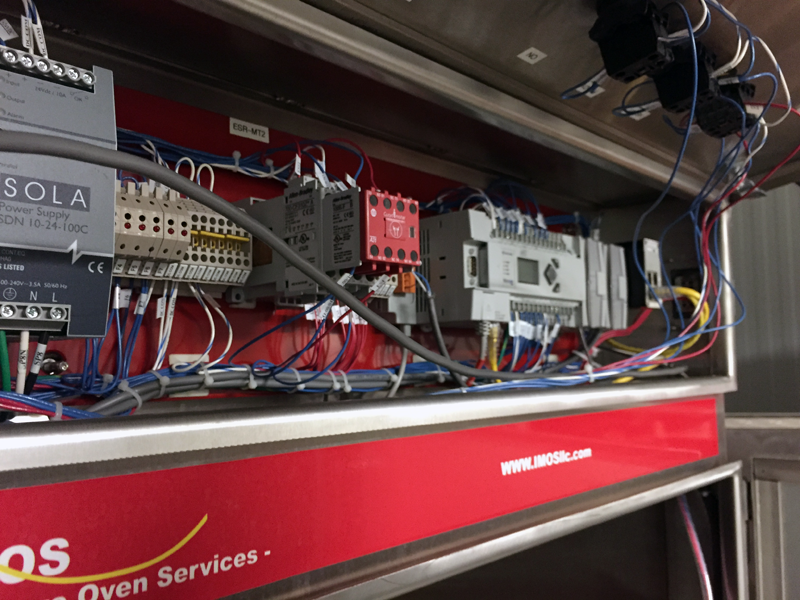

Allen Bradley PLC controlled in the remote access head of the transmitter. Machlett designed high voltage diodes and diode assemblies. MachWave 75 kW transmitter with both access doors opened. The maintenance access for the magnetron tube is 100% more effective than any other design. Machwave cooling system showing a wide view of the quality construction. Another vies of a water manifold assembly. Notice the quality in workmanship.

Page 4 of 5
< Previous Page | Next Page >
